▷Apperance

Realizes ideal systematicity, operability, and extendability

This system camera unit realizes ideal systematicity, operability, and extendability.



Almost all the cameras can be built for system camera, for example, HD/ENG camera for studio camera, 4K camera for sports recording.*

*Some models are excluded.



New system camera unit which utilize box type lens maximumly

By using B4 2/3-PL lens interchange mount including box type B4 2/3 inch camera and shoulder camera recorder for business use, box type high performance lens can equip with Canon EOS C500 PL, Panasonic digital cinema camera VARICAM, AJA CION, RED DRAGON, and Sony F55 to produce powerful video.

Picture:HDS-1500



Compatible with PL camera with Iris controll unit

Iris control is possible in HDS-1500/1500RT without CCU using any camera.
When using CCU, cameraman can control Iris by swicthing.



Models with “RT” means incorporating FS.
You can change HD-SDI return video image in a shockless state.

Picture:HDS-1500RT+HDS-15A(Viewfinder mounting base)



Equipped another power supply connector to box type lens

HDS-1500/1500RT can power supply with its power input terminals to box type lens.
Thereby, it supports PL camera and other types of camera which can’t power supply from the camera.



Transmission system can equipping

It can equip transmission system of PROTECH Optic Conversion Camera System and Multicore system.

Apperance

HDS-1500RT

HDS-1500

Example of use

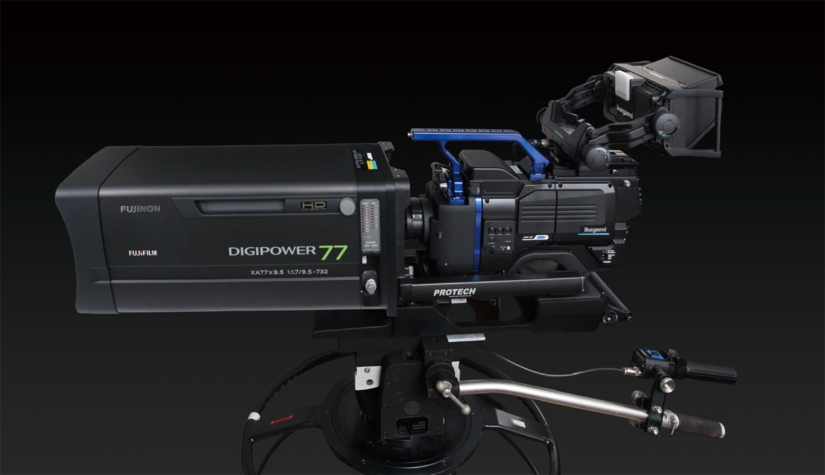

Ikegami camera


Camera: HDK-97 ARRI manufactured by Ikegami Tsushinki Co., Ltd.
VF: VFE740HD manufactured by Ikegami Tsushinki Co., Ltd.
PL / B4 lens conversion: Musashi Optical System
Lens: Fujinon Studio Lens DIGIPOWER77
Stakame adapter: PROTECH HDS-1500
Pedestal: SHOTOKU Seisakusho
AJA Video Systems CION Camera


Camera: AJA Video Systems CION
VF: PROTECH HDF-EL800
PL / B4 lens conversion: Musashi Optical System
Lens: CANON Studio lens DIGISUPER100AF
Stakame adapter: PROTECH HDS-1500

SONY PMW-F55 Camera


Lens: CANON Studio lens DIGISUPER100AF
Camera: SONY PMW-F55
Stakame adapter: PROTECH HDS-1500

CANON EOS C500PL


Camera: CANON EOS C500PL
VF: PROTECH HDF-EL800SK
PL / B4 lens conversion: SONY LA-FZB2
Lens: CANON Studio lens DIGISUPER100AF
Stakame adapter: PROTECH HDS-1500
Pedestal: SHOTOKU Seisakusho
