3G-SDI Dual Link & Bidirectional, Fiber Optic camera conversion system

LS-700 Camera Adaptor/LS-800 Base Station

For 2 x HD(3G) Cameras or 3D Production with Single Optical Fiber Cable!

Features

  1. Transferable signal with the dual link system are;
    • 3G/HD/SD-SDI & HD-Y/Video Composite
    • Prompter video signal
    • Return video
    • 2-channel analog audio
    • 2-way intercom lines
    • Tally, TC & Genlock video
    • Camera remote control data
  2. Extendable max. distance between camera adaptor and base station is up to 2 km.
  3. Support embedded audio.
  4. Broadcast quality video & audio.
  5. Signal error detection.
  6. Robust, high performance & versatile functions.
  7. Camera signal can be adjusted with camera remote control unit from Sony or Panasonic.
  8. V-mount battery operation
  9. AC/DC operation, long-time operation with low-power consuming circuit for field production.

Optional Accessory:

  • Optical Fiber Cable (ALC-20M 20 m or ALC-50M 50 m or ALC-100M 100 m)
  • 19″Rack Mount Frame HS-RA95
  • Intercom headset DL-400 / DL-500 / DL-550
  • VF I/F Unit (for Sony Pro Camera VIF-100 or for Sony BC Camera VIF-100BC or for Panasonic VIF-100P)
  • VF 6pin Cable VC-450
  • Tally Connection Cable TC-550
  • Remote cable RCC-450

Specifications

・LS-700
・LS-800

LS-700

■Output

  • HD/SD-SDI(return signal): 2(HD/SD-SDI 1: BNC x 1)(HD/SD-SDI 2: BNC x 1), HD-SDI :1.5G
  • HD-Y/Composite(return): 1(BNC x 1): 1Vp-p, 75Ω, Analog composite or HD-Y ※1
  • Prompter /Ref. video: 1(BNC x 1): 1Vp-p, 75Ω, Analog composite or HD-Y, Teleprompter output
    Audio (program audio): 2(XLR 3-pin(female) x 2): LINE=+4dB, MIC= -60dB
  • Time Code: 1 (BNC x 1)
  • Reference: 1 (BNC x 1)
  • DC out: 2(XLR 4-pin(female) x 1): 15V DC 3.5A (Maximum 15.3 V DC 3.5A), (V-mount x 1): 15V DC 4.5A (Maximum DC 15.3V 4.5A) Total 75W
  • Monitor I/F: 1 (Mini 6-pin(female) x 1) : RET video signal, 13.5 V DC 1 A and TALLY out for VIF-100
  • Headphone: 1 (Stereo mini-jack, 3.5 mm dia. x 1)

■Input

  • HD/SD-SDI: 2(HD/SD-SDI 1: BNC x 1) HD-SDI :1.485Gbps, 1.485/1.001Gbps(reclock), (HD/SD-SDI 2: BNC x 1) SD-SDI :143Mbps,177Mbps, 270Mbpd,360Mbps, 540Mbps(reclock)
  • HD-Y/COMPOSITE: 1(BNC x 1): 1Vp-p, 75Ω, Analog composite or HD-Y
  • Audio (CA audio): 2(XLR 3-pin(female) x 2): LINE=+4dB, MIC= -60dB, mic P48 on/of
  • Time Code: 1(BNC x 1)

■Intercom

  • Intercom headset: 2(XLR 4-pin(male) x 2)

■Tally

  • Tally signal output: 1(BNC x 1)
  • Tally indicator: RED2(Main panel x 1 and Connector panel, ON/OFF Selectable x 1), GREEN 1(Main panel x 1)

■Remote

  • Remote: 8-pin or 10-pin ※2

■Optical fiber cable connection

  • Socket: LEMO P/N: EDW.3K.93C.TLC
    Maximum distance: approx. 1.25 miles(2 km) with DC power supplied from LS-800

■General

  • Weight: approx. 3.96lbs.(approx. 1.8 kg)
  • Dimensions(W x H x D): 7.80 x 6.89 x 3.58 inches(198 x 175 x 91 mm)
  • Power requirement: 15V DC 19W Max.
  • Power consumption: DC operation Maximum: approx. 19W
  • Operating temperature: +32°F to 104°F(0°C to 40°C)
  • Storage temperature: -4°F to 140°F(-20°C to 60°C)



※1: Either of return inputs of LS-800 selected by RET select switch is output.
※2: 8-pin for SONY RM-B750 or RM-B170/B150 and 10-pin for Panasonic AG-EC4G or AJ-RC10G.

LS-800

■Output

  • HD/SD-SDI: 2(HD/SD-SDI 1: BNC x 3): Audio,TC embedded, (HD/SD-SDI 2: BNC x 4):Audio,TC embedded
  • HD-Y/VIDEO composite: 1(BNC x 1): 1Vp-p, 75Ω, Analog composite or HD-Y
  • Audio(CA audio): 2(XLR 3-pin(male) x 2): LINE=+4dB, MIC= -60dB
  • Time Code: 1(BNC x 1)
  • Remote Video: 1 (BNC x 1)(Composite)
  • Monitor: 1(Stereo headphone jack 6.3 mm dia. x 1)

■Input

  • HD-SDI(return signal): 2(HD/SD-SDI 1: BNC x 1): Audio,TC embedded, (HD/SD-SDI 2: BNC x 1): Audio,TC embedded
  • HD-Y/VIDEO composite: 2(BNC x 2): 1Vp-p, 75Ω, Analog composite or HD-Y
  • Prompter/Ref.video: 1(BNC x 1): 1Vp-p, 75Ω, Analog composite or HD-Y, Telepromoter input
  • Audio (Program audio): 2(XLR 3-pin(female) x 2): LINE=+4dB, MIC= -60dB
  • Time Code: 1(BNC x 1)
  • Reference: 1(BNC x 1)
  • DC: 1(XLR 4-pin(male) x 1): 12V

■Intercom

  • 2W line: 2, Producer line (XLR 3-pin(female/male) x 1/1), 2, Engineer line(XLR 3-pin(female/male) x 1/1)
  • 4W line: 1(HD D-sub 15-pin(female) x 1)
  • Intercom headset: 1(XLR 4-pin(male) x 1)

■Tally

  • Tally signal input: 1(HD D-sub 15-pin(female) x 1)
  • Tally signal outnput: 1(HD D-sub 15-pin(female) x 1)

■Remote

  • Remote: 8-pin or 10-pin ※

■Optical fiber cable connection

  • Plug: LEMO P/N: FXW.3K.93C.TLM
    Maximum distance: approx. 1.25 miles (2 km) with DC power supplied to LS-700 via optical fiber cable

■General

  • Weight: approx. 7.28lbs.(approx. 3.3 kg)
  • Dimensions(W x H x D): 8.46 x 4.53 x 11.9 inches(215 x 115 x 302 mm)
  • Power requirement: AC: 100/200V(85-240V) 60Hz/50Hz/ DC: 12V(12-16V)
  • Power consumption: AC operation Maximum: approx. 128W/ DC operation Maximum: approx. 28W
  • Operating temperature: +32°F to 104°F(0°C to 40°C)
  • Storage temperature: -4°F to 140°F(-20°C to 60°C)



※: 8-pin for SONY RM-B750 or RM-B170/B150 and 10-pin for Panasonic AG-EC4G or AJ-RC10G.

Apperance

・LS-700
・LS-800

LS-700

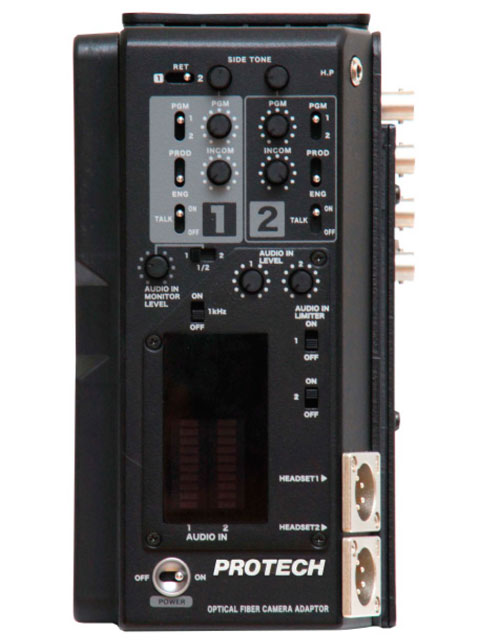

■Front

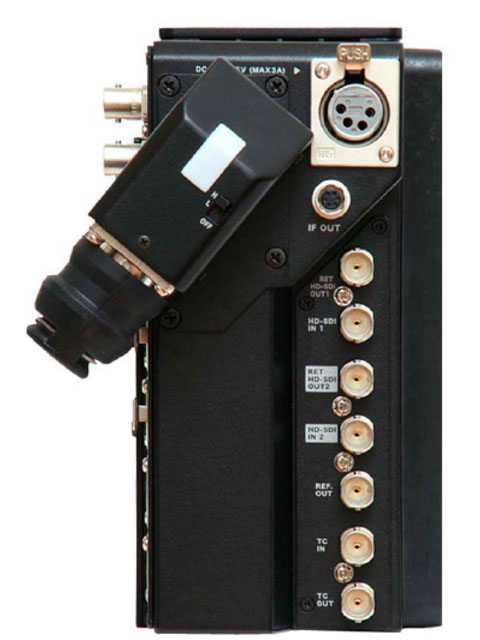

■Back

LS-800

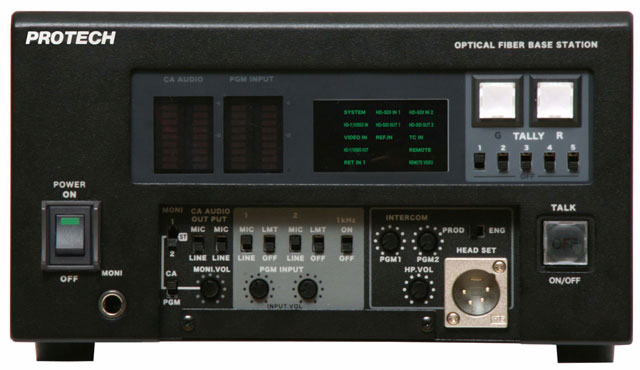

■Front

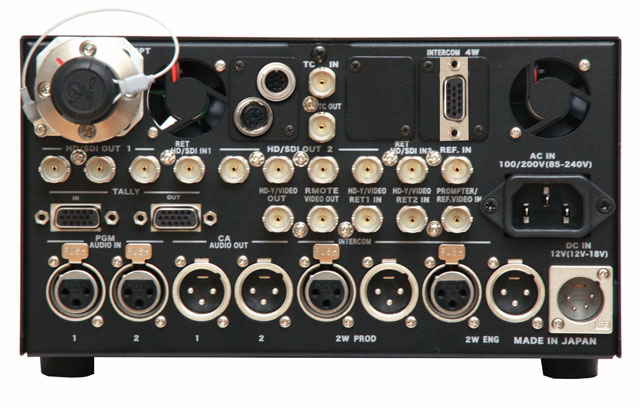

■Back

Note. Features, design and specifications are subject to change without notice.
